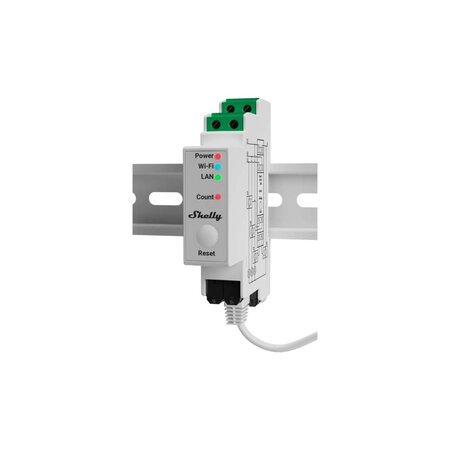

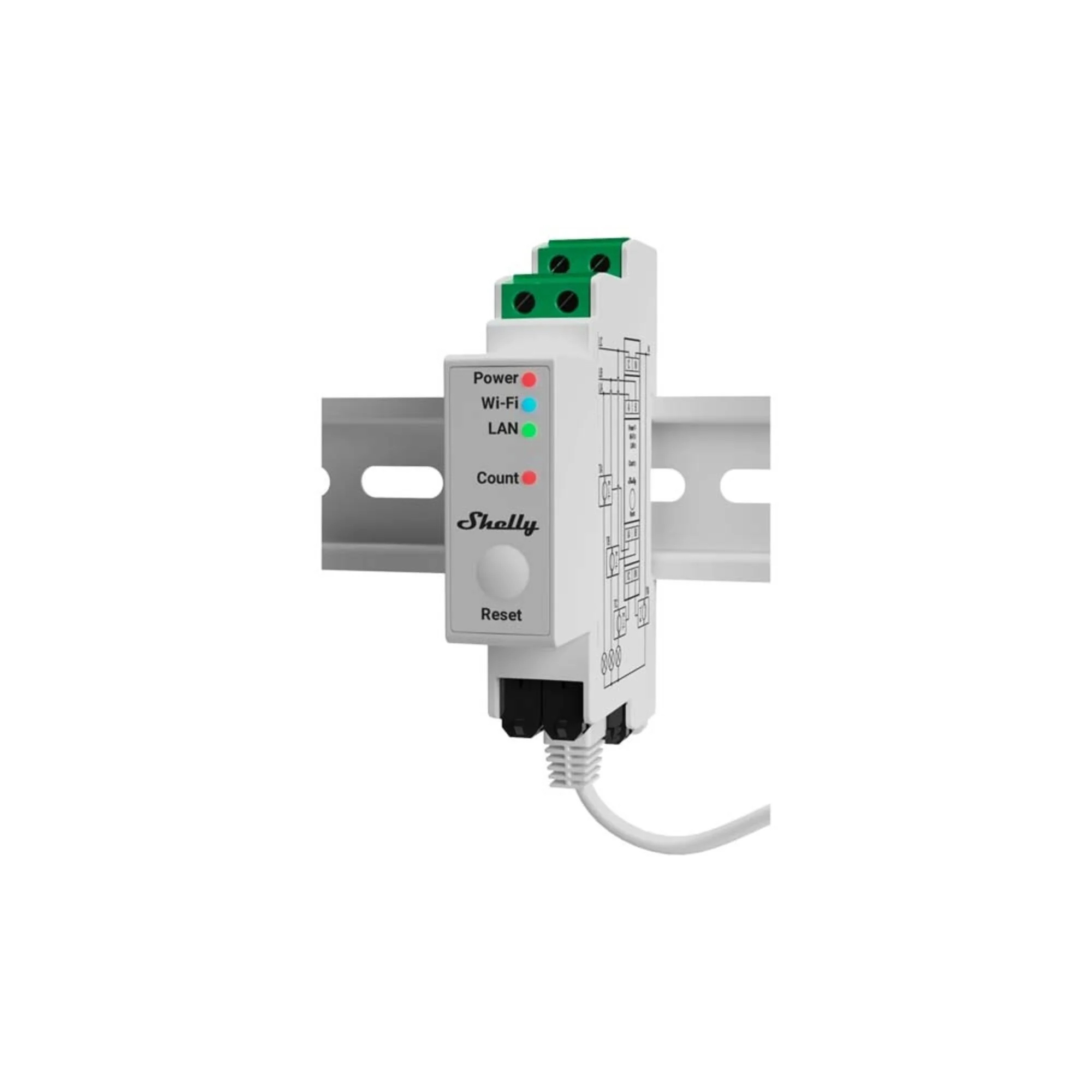

Shelly Pro 3EM Energie Meter

Shelly Pro 3EM is a DIN rail mountable three-phase energy meter. Enhanced with all the gen2 firmware flexibility and LAN connectivity, it provides professional integrators with additional options for end-customer solutions. Shelly Pro 3EM reports accumulated energy as well as instantaneous voltage, current, and power factor per phase in real-time.

• can measure up to 120A per phase and the neutral

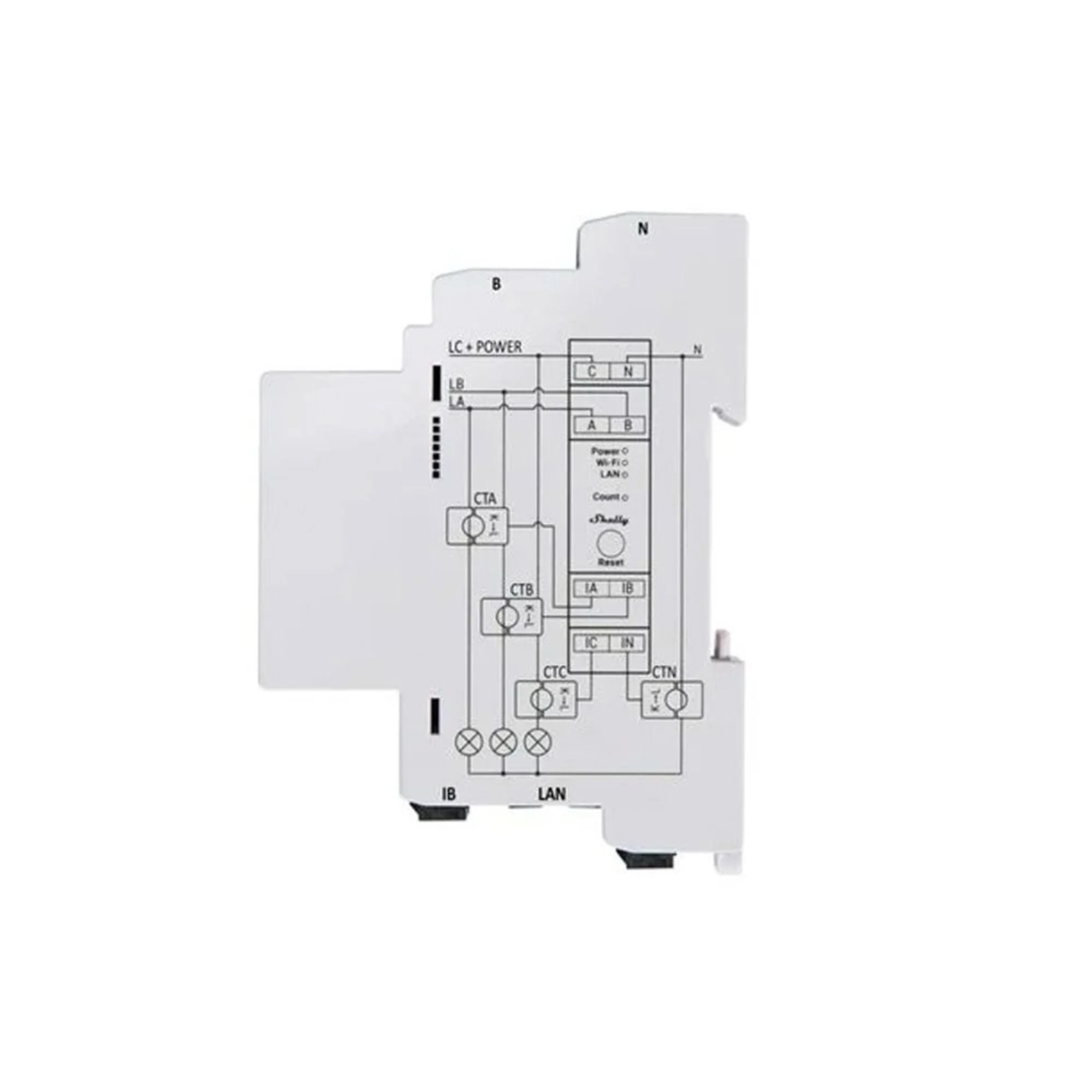

• 4 quadrant measurement with multiple connection types
• Accuracy B active energy (Compliance with IEC 62053-21 based on manufacturer testing)
• Photovoltaic ready
• Phase sequence error detection (option)
• Optical pulse indication of energy usage
• Measurement accuracy t? 1%
• Stores data in non-volatile memory that can be retrieved for a period of up to 60 days in 1-minute intervals
• Package includes 3 pieces of 120A Current Transformers
